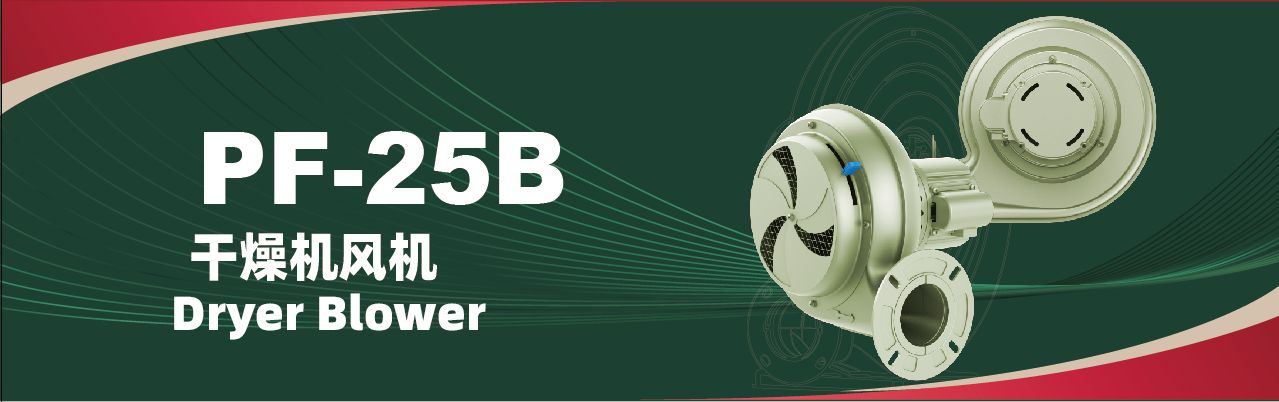

當前位置: 首 頁 / 產品中心/干燥機/dryer blower/PF25B
吸風散熱
動力源源不斷
超靜音
高強度
FOCUS ON WIND
CREATE THE VALUE
專注風的價值 · 為客戶創造價值
好風機
永強造
1
SIZE

AVAILABLE

一種安裝尺寸
1.輸入功率/power:95W? ? ? ? ? ?2.電壓/voltage:220V
3.轉速/speed:2800r/min2? ? ? ?4.風壓/pressure:490Pa
5.風量/air flow:350m3/h? ? ? ? ? 6.噪音/noise:80dB(A)
7.電源線長度/wire length:0.9m

產品特性描述:

? ? ? 干燥機風機因其蝸殼采用冷板沖裁而成

重量輕,風量大,適合塑料機械干燥/

鼓風/吸塵,適合單相和三相用電,效

率高,壽命長。

Product characteristics? ??

? ? ?The blower of the dryer is light in weight and large in air volume because of its volute made of cold plate punching, suitable for plastic machinery drying/blast/vacuum , suitable for single-phase and three-phase electricity, high efficiency and long service life.

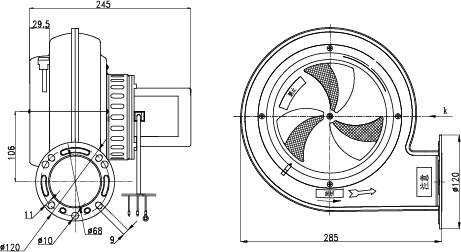

產品尺寸及參數
PRODUCT PARAMETERS
產品編碼:8.27.07.01.02.0001
安裝方式:法蘭安裝
風機性能參數:
產品編碼 產品名稱 電壓(V) 輸入功率(W) 轉速(r/min) 風量(m3 /h) 風壓(Pa) 噪音(dBA)
8.27.07.01.02.0001 PF-25BT干燥機Φ120七孔/銅線 220 95 2800 350 490 80
產品特性描述
PRODUCT CHARACTERISTICS

? 干燥機風機因其蝸殼采用冷板沖裁而成、重量輕風量大。適合于塑料機械干燥/鼓風/吸塵,適合單相和三相用電,效率高,壽命長。

? ? ? The blower of the dryer is light in weight and large in air volume because of its volute made of cold plate punching, suitable for plastic machinery drying/blast/vacuum , suitable for single-phase and three-phase electricity, high efficiency and long service life.? ?
